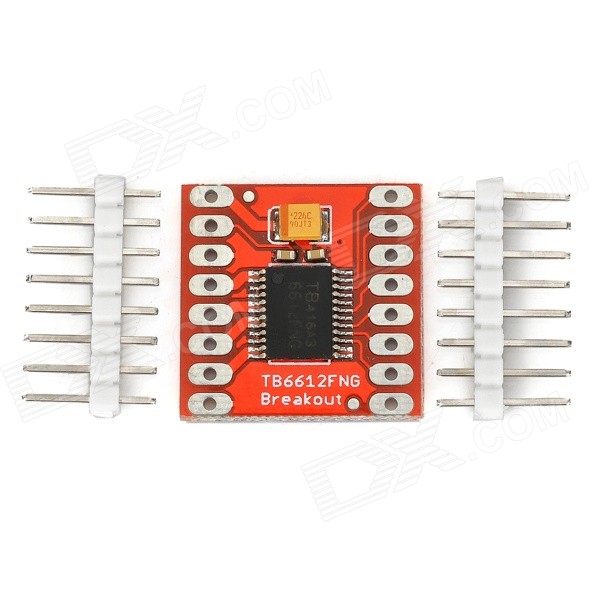

Features Power supply voltage: VM=15V max, VCC=2.7-5.5V; Output current: Iout=1.2A(average) / 3.2A (peak); Standby control to save power CW/CCW/short brake/stop motor control modes; Built-in thermal shutdown circuit and low voltage detecting circuit; All pins of the TB6612FNG broken out to 0.1″ spaced pins; Filtering capacitors on both supply lines
| General | |
|---|---|
| Model | TB6612FNG |
| Quantity | 1Piece |
| Color | Red |
| Material | FR4 |
| Specification | |
| English Manual / Spec | No |
| Download Link | For more information, please refer to http://wiki.duinofun.com/images/7/75/TB6612FNG.pdf |
| Dimensions & Weight | |
|---|---|
| Dimensions | 0.83 in x 0.79 in x 0.16 in (2.1 cm x 2 cm x 0.4 cm) |
| Weight | 0.18 oz (5 g) |
| Packing List |
|---|
| 1 x Module |
