Absolute Native Electronics – Product Details
– Compatible with ARDUINO, RASPBERRY PI, AVR, PIC, 8051, etc.
Product Description:

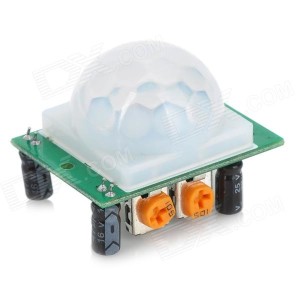

PIR infrared sensor module is based on infrared technology, automatic control products. High sensitivity, high reliability, low power consumption, low voltage operation mode. Widely used in various auto-sensing electrical equipment, especially for battery-powered automatic control products.
Electrical parameters
Dimension: 3.2cm x 2.4cm x 1.8cm (approx)
Infrared sensor with control circuit board
The sensitivity and holding time can be adjusted
Working Voltage Range: DC 4.5V- 20V Current drain:<60uA Detection distance: 3–7M(can be adjusted)
Delay time: 5-200S(can be adjusted, default 5s +-3%)
Blockade time: 2.5 S (default)
Trigger: L: Non-repeatable trigger H: Repeat Trigger (default)
Work temperature: -20 to+80°C
Trigger Method: L unrepeatable trigger / H repeatable trigger
Features :
1 – automatic induction : to enter the sensing range of the output is high, people leave the sensing range is automatically delay off high, output low.
2 – photosensitive control (optional, not factory setting) can be set photosensitive control, day or light intensity without induction .
3 – two kinds of trigger modes: (jumper selectable)
a – unrepeatable trigger : the sensor output high, the delay time is over, the output automatically from high into low;
