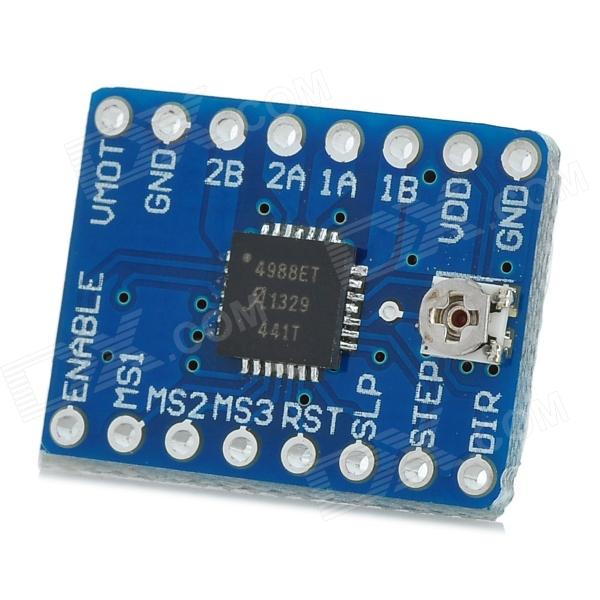

GY-4988 A4988 3D Printer Stepper Motor Driver Module

A4988 is a complete microstepping motor driver with built-in translator for easy operation. This product is available in full, half, 1/4, 1/8 and 1/16 step modes operate bipolar stepper motors, output drive capacity up to 35 V and ± 2A. A4988 includes a fixed off-time current regulator, the regulator in slow or mixed decay modes. A4988 converter is the key to the easy implementation. As long as the “step” input inputting one pulse drives the motor one microstep. There are no phase sequence tables, high frequency control lines, or complex interfaces to program. A4988 interface is very suitable for complex microprocessor which is unavailable or is overburdened. In the micro-step operation, A4988 chopping control inside automatically selects the current decay mode (Slow or Mixed). In mixed decay mode, the device is initially set to a fixed downtime in some fast decay, then the rest of the slow decay downtime. Mixed decay current control scheme results in reduced audible motor noise, increased step accuracy, and reduced power consumption. Internal synchronous rectification control circuitry is provided to improve the pulse-width modulation (PWM) operation power consumption. Internal circuit protection includes: thermal shutdown with hysteresis, under voltage lockout (UVLO), and crossover-current protection. Special power sequencing.
General
Brand N/A
Model GY-4988
Quantity 1Piece
Color Deep Blue
Material Copper clad + components
Specification
English Manual / Spec Yes
Other Features
Other Features Low RDS (ON) output; Automatic current decay mode detection / selection; Mixed with slow current decay modes; Synchronous rectification for low power dissipation; Internal UVLO; Crossover-current protection; 3.3 and 5 V compatible logic supply; Thermal shutdown circuitry; Ground fault protection; Load short-circuit protection; Step five selectable modes: full, 1/2, 1/4, 1/8 and 1/16
Dimensions & Weight
Dimensions 0.83 in x 0.63 in x 0.12 in (2.1 cm x 1.6 cm x 0.3 cm)
Weight 0.18 oz (5 g)
Packing List
1 x Module
