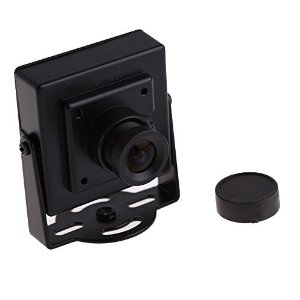

FPV Mini Camera 1.3” HD 700 PAL TVL 3.6MM DC12V CCD for Helicopter
Description
100% Brand new and high quality
Name: FPV Mini Digital CCD Camera HD 700TVL for Aerial Photography
Material: Steel
Color: Black
Technical parameters:
Pickup device: Color, 8240+8510 chips
Horizontal resolution: 700TVL
System format: PAL/NTSC PAL ( H X V ): 512X 582 NTSC ( H X V ): 542 X 492
Electronic shutter: PAL= 1/50 – 1/100,000 seconds NTSCL= 1/60 – 1/120,000 seconds
Minimum illumination: 0.1Lux (F: 1.2)
SNR(Signal to Noise Ratio): > 48dB (automatic gain closed)
Gamma: 0.45
Backlight compensation: ON/OFF switchable
Lens: Original lens 2.1mm selective
Automatic gain: ON/OFF
Automatic white balance: ON/OFF
Lens installation: C/CS
Video output: 1 Vp-p, 75?
Power input: DC 12V
Working temperature range: -10? to 50? (maximum humidity 95%)
Storage temperature range: – 20? to 60? (maximum humidity 95%)
Applications: Widely used for four axis, fixed wing, helicopters and other aerial aircraft
Features: Support OSD menu control, clean and fine image, vivid picture quality, low illumination, wide voltage and low power consumption
Packaging content:
1 x FPV Mini HD Camera
1 x Cable
