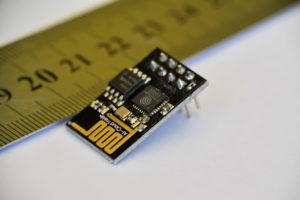

ESP8266 adalah modul wifi yg bisa berfungi sendirian atau dihubungkan dengan Arduino atau Raspberry Pi sehingga IoT anda bisa terhubung dengan internet.
Spesifikasi:
– 802.11 b/g/n protocol
– Wi-Fi Direct (P2P), soft-AP
– Integrated TCP/IP protocol stack
– Integrated TR switch, balun, LNA, power amplifier and matching network
– Integrated PLL, regulators, and power management units
– +19.5dBm output power in 802.11b mode
– Integrated temperature sensor
– Power down leakage current of < 10uA
– Integrated low power 32-bit CPU could be used as application processor
– SDIO 2.0, SPI, UART
– STBC, 11 MIMO, 21 MIMO
– A-MPDU & A-MSDU aggregation & 0.4s guard interval
– Wake up and transmit packets in < 2ms
– Standby power consumption of < 1.0mW (DTIM3)
– Ukuran : 13.2 x 21.1mm
