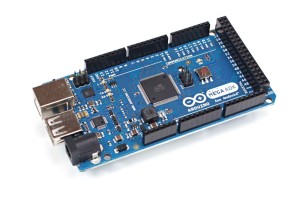

Arduino Mega Android™ Development Kit is a microcontroller board based on the ATmega2560. It has a USB host interface to connect with Android-based phones, based on the MAX3421e IC. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. Similar to the Mega 2560 and Uno, the Arduino Mega Android Development Kit features an Atmega8U2 programmed as a USB-to-serial converter.
Arduino recommends viewing Google’s ADK documentation for information on using the board with the Android OS. The hardware design files and firmware code are contained in the ADK package download, available on the site.
Specifications
Microcontroller: ATmega2560
Operating voltage: 5V
Input voltage (recommended): 7-12V
Input voltage (limits): 5.5-16V
Digital I/O pins: 54 (of which 14 provide PWM output)
Analog Input pins: 16
DC current per I/O Pin: 40mA
DC current for 3.3V Pin: 50mA
Flash memory: 256KB of which 8KB used by bootloader
SRAM: 8KB
EEPROM: 4KB
Clock speed: 16MHz
Front and Rear Views
