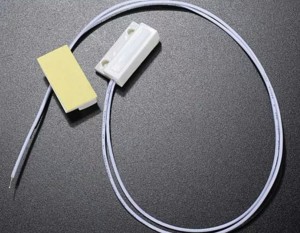

Contact NO Normally Open : tidak ada magnet open, ada magnet close
Description:
shield anti-fire ABS
2.connecting mode: N.O. normally open
3. rated current : 100mA
voltage : 200 VDC
5. operating distance: more than 10mm, less than 25mm
power: 3W
No external power supply, connect to wired or wireless alarm control panel GND and N.O ports directly! Please note that this item not fit to iron door, It will decline magnetic of the sensor.
Size:27.15mmX13.9mmX7.7mm
Material:ABS
Working distance:10-25mm
Max. Contact Rating:10 W
Max. Switching Voltage :100 VDC
Min. Breakdown Voltage:220 VDC
Max. Switching Current:0.5A
Max. Carry Current :1 A
Max. Initial Contact Resistance:100 m
Min. Insulation Resistance:1010
Max. Operate time:0.4ms
Bounce time:0.3 ms
Max. Release time:0.05 ms
Min. Resonant Frequency:5000400HZ
Max. Operating Frequency :500 HZ
Pull in Value:10-45 AT
Min. Drop out Value:5 AT
Max. Contact Capacitance:0.3pF
Resistance:5000 T/450
